Three-way zone valve-Orkli

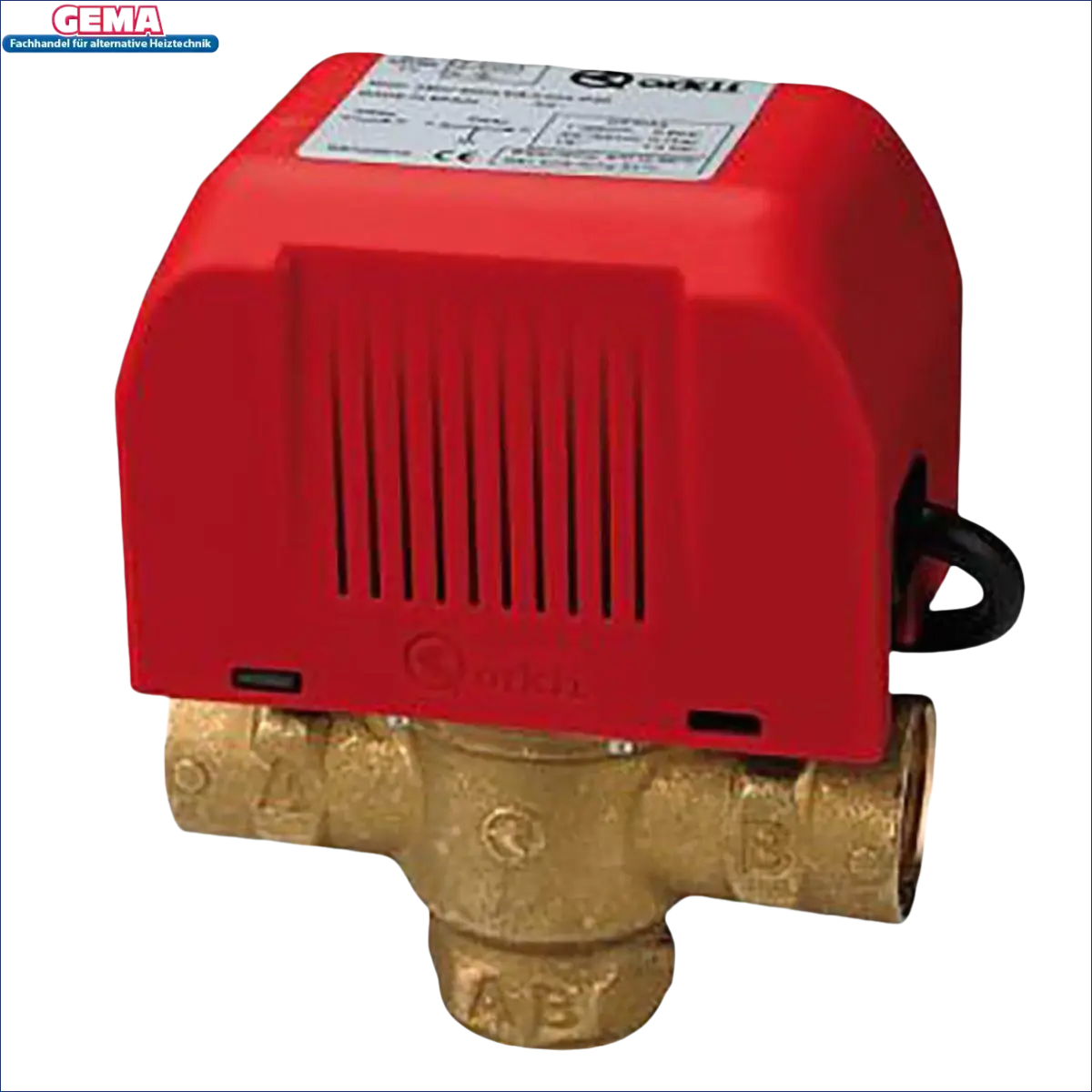

Three-way zone valve
The motor-operated ORKLI zone valves are either "open" or "closed", i.e. "0" or "1".
They are designed for use in closed circuits in heating systems, for heating sanitary water (hot water preparation) or in the air conditioning sector.
The 3-way zone valves are bypass valves with one inlet (marked on the valve body: AB) and two outlets (marked A and B).
Technical data: ORKLI
- Pressure max. 10 bar
- Differential pressure max. DN 25 1" 0.7 bar
- Temperature continuously 5 to + 88 °C
- Temperature briefly 5 to + 110 °C
- Connection cable 60 cm
- Hysteresis motor 230/50 V/Hz
- Temperature range 5 to - 98 °C
- Valve body brass
- Customs connection 1" IG
- Return by spring force
- without end position microswitch
*Technical changes reserved | Images may vary
